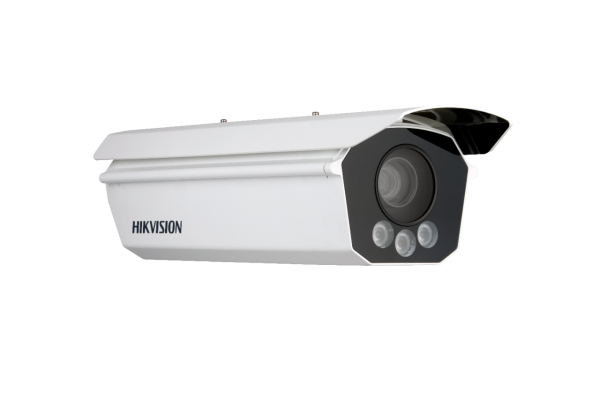

IDS-TCV900-BE

IDS-TCV900-BE Specifications

• Camera
• Image Sensor9 MP (1'' GMOS)
• Max. Resolution4096 ? 2160
• Min. IlluminationColor: 0.001 Lux@(F1.4, AGC ON)
• Shutter Time50 us-20000 us

• Lens
• Focal Length & FOV

  11-40 mm (Horizontal: 62? to 23.6?, vertical: 32.2? to 12.2?) ;

  25 mm (Horizontal: 31?, vertical: 16.9?)

• FocusManual
• ApertureF1.6-25/F1.4

• Illuminator
• Built-In Supplement Light RangeUp to 27 m
• External Supplement LightExternal strobe/flash/solid light

• Video
• Main Stream

  50 Hz: 25 fps (4096 ? 2160, 1920 ? 1080, 1280 ? 720)

  60 Hz: 30 fps (4096 ? 2160, 1920 ? 1080, 1280 ? 720)

• Sub Stream1920 ? 1080, 704 ? 576
• Video Compression

  H.264 and H.265 encoding

  Main stream: H.265/H.264/MJPEG

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline profile/Main profile/High profile
• H.265 TypeBaseline profile/Main profile/High profile

• Network
• ProtocolsTCP/IP, HTTP, HTTPS, FTP, DNS, RTP, RTSP, RTCP, NTP, IPv6, UDP
• Simultaneous Live ViewUp to 6 channels
• APIONVIF (Version 2.1, PROFILE S, PROFILE G), ISAPI, SDK
• User/Host

  Up to 32 users

  3 user levels: administrator, operator and user

• Security

  Password protection, HTTPS encryption, digest authentication for HTTP/HTTPS, digest

  authentication for ONVIF (Version 2.1)

• Network StorageMicroSD/TF card (128 GB), local storage and CVR, NVR, ANR
• ClientiVMS-8600, iVMS-4200 (Only for video live view and LPR information search), Hik-Central Master, Hik-Central Pro
• Web BrowserIE8-IE11, plug-in free live view supported

• Image
• Image SettingsSaturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser.
• Day/Night SwitchAuto/Scheduled/Triggered by alarm in
• SNR60 dB
• Image EnhancementBLC, HLC, 3D DNR
• Picture OverlayLOGO picture can be overlaid on video with 128 ? 128 24-bit bmp format.

• Interface
• Ethernet Interface2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet interfaces
• On-Board StorageBuilt-in microSD/TF card, up to 128 GB
• Alarm2 input interfaces (T1, SYNC), 7 output interfaces
• RS-4853 RS-485 interfaces (half duplex, HIKVISION)
• RS-2321 RS-232 interface
• USB1 USB 2.0 interface

• Event
• Basic EventHDD Error, network disconnected, IP address conflicted, vehicle detector exception, traffic light detector exception

• Road Traffic And Vehicle Detection
• Coverage2 to 3 lanes
• Trigger ModeExternal I/O trigger/Radar trigger/Video trigger
• Smart Function

  License plate recognition;

  Vehicle type classification, vehicle color recognition, no-plate vehicle capture, moving direction detection

• LPR Countries/Regions

  Middle East:

  The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iran, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain

  Africa:

  Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria

  Asia-Pacific:

  Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Burma, India, Mongolia, Cambodia, Laos, Bangladesh

  America:

  The United States of America, Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala

  Europe:

  Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian State, Belgium, Luxembourg, Albania, Kosovo

  Russian-Speaking Regions:

  Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia

• Accuracy (Under Recommended Installation And Lighting Conditions)

  Capture rate > 98%

  Vehicle moving direction recognition accuracy > 98.5%

  LPR accuracy > 98%

  Mistaken capture rate < 2%

  European and Russian-Speaking Regions:

  LPR accuracy > 98%

  Country/Region recognition accuracy > 95%

• No License Plate DetectionSupported
• Motorcycle LPRSupported
• Vehicle TypeCar/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle
• Vehicle Color

  Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black

  Recognizable at daytime only.

• Vehicle Manufacturer

  84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu,

  Dongwo, Subaru, Iveco, MINI, JEEP, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, Saic Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Guangzhou Yunbao, Joylong, Geely, Cadillac, JBC, Ankai, Haima, Foton, King Long, Dongfeng, Geely-Emgrand, Perodua, UD, BYD, Renault Samsung, Proton, HICOM, Malaysia_Unknown 1, Hyundai-Rohens, SsangYong-Old Version, Equus-Old Version, CNHTC, Rolls-Royce, Beiben Truck, Haval, Hino, Kia-Borrego, Changan, Alfa, FORO

• License Plate Color RecognitionCustomized to support
• Driving On Lane Line DetectionSupported (only strobe light mode)
• Illegal Lane Change DetectionSupported (only strobe light mode)
• Wrong-Way Driving DetectionSupported
• Emergency Lane OccupationSupported (truck forbidden lane, emergency lane, urban bus lane)
• Seatbelt DetectionSupported (with flash supplement light)
• Phone Call DetectionSupported (with flash supplement light)
• Capture Speed Range5 to 250 km/h

• General
• Firmware VersionV4.3.1
• Operating SystemLinux
• Power

  24 VDC ? 20%/100 to 240 VAC

  < 30 W

• MaterialAluminum alloy
• DimensionWith package: 175.68 ? 137.5 ? 443.99 mm (6.92" ? 5.41" ? 17.48")
• WeightCamera: approx. 6.5 ? 0.5 kg (14.3 ? 1.1 lb)
• Operating Condition

  Temperature: -40 ?C to +60 ?C (-40 ?F to +140 ?F)

  Humidity: 95% or less (non-condensing)

• General FunctionOne-key reset, three streams, heartbeat, password protection, watermark
• HeaterSupported

• Approval
• EMCCE, FCC
• EnvironmentRoHS
• ProtectionIP66

What's Included

Manuals
