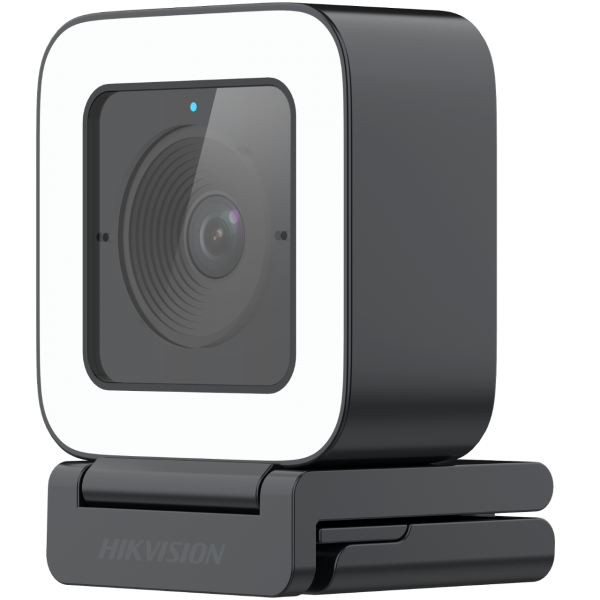

DS-UL8

DS-UL8 Specifications

• Camera
• Image Sensor8 MP CMOS
• Signal SystemPAL/NTSC
• Frame Rate

  USB3.0

  MJPG:

  3840 ? 2160@30/25fps

  2560 ? 1440@30/25fps

  1920 ? 1080@30/25fps

  1280 ? 960@30/25fps

  1280 ? 720@30/25fps

  640 ? 480@30/25fps

  640 ? 360@30/25fps

  YUV:

  1920 ? 1080@30/25fps

  1280 ? 960@30/25fps

  1280 ? 720@30/25fps

  640 ? 480@30/25fps

  640 ? 360@30/25fps

  ?

  USB2.0

  MJPG:

  1920 ? 1080@30/25fps

  1280 ? 960@30/25fps

  1280 ? 720@30/25fps

  640 ? 480@30/25fps

  640 ? 360@30/25fps

  YUV

  1920 ? 1080@5fps

  1280 ? 960@5fps

  1280 ? 720@10fps

  640 ? 480@30/25fps

  640 ? 360@30/25fps

• Resolution3840 (H) ? 2160 (V)
• Min. Illumination0.1 Lux @ (F1.2, AGC ON)
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Lens3.6 mm fixed focal lens
• Field Of Viewhorizontal FOV: 83?, vertical FOV: 53?, diagonal FOV: 91?
• Lens MountM8
• Day & Night24/7 Color Imaging
• Angle Adjustmentpan: 0?; tilt: 0? to 35?; ratation: 0?
• Digital ZoomYes
• Cable Length2 m
• Depth Of Field0.1 m to

• Audio
• Audio Sampling Rate48 kHz

• Interface
• Video OutputUSB 2.0;USB 3.0
• Audio InBuilt-in mic
• Operating System

  Windows 8.1+

  Android 8.1+

  Linux 4.14+

  macOS 10.12+

  Chrome OS

• General
• Operating Conditions-10?C to 40?C, Humidity: 90% or less (non-condensing)
• Power SupplyDC 5V ? 5% (USB)
• Consumption4.5 W MAX
• Dimension47.9 mm ? 59.9 mm ? 75.4 mm (1.89" ? 2.36" ? 2.97")
• Approx. 171g (0.38 lb.)

• Accessory
• Packing List

  Camera ? 1

  USB Cable ? 1

  Quick Start Guide ? 1

  Bracket ? 1

  Tripod ? 1
