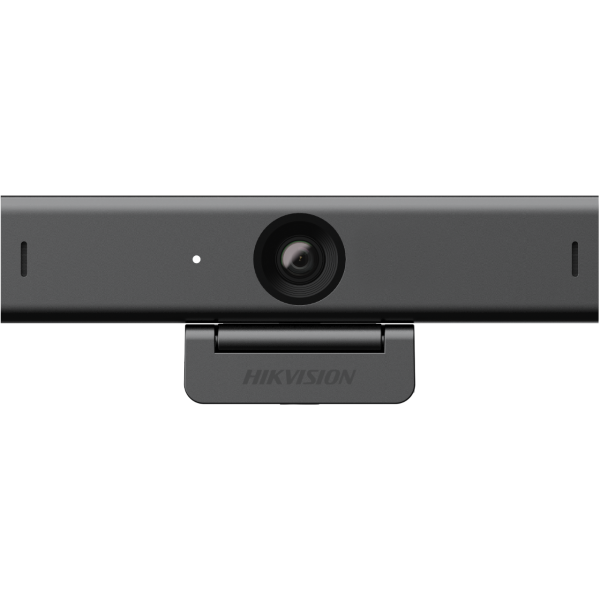

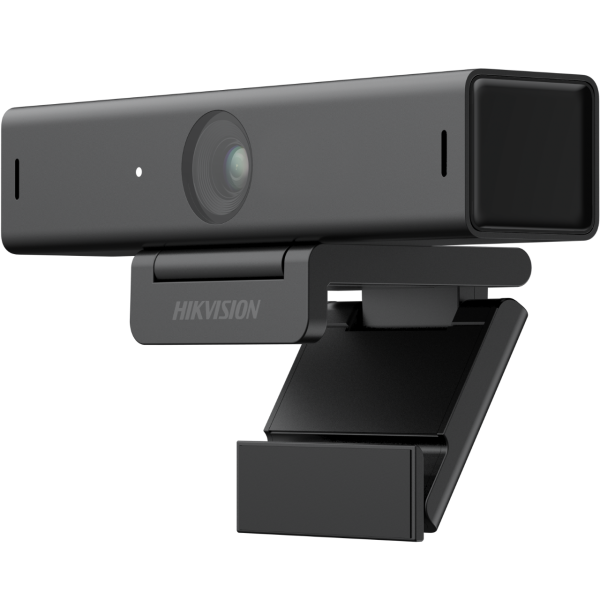

DS-UC2

DS-UC2 Specifications

• Camera
• Image Sensor2 MP CMOS
• Signal SystemPAL/NTSC
• Frame Rate

  MJPG

  1920 ? 1080 @ 30 fps/25 fps

  1280 ? 960 @ 30 fps/25 fps

  1280 ? 720 @ 30 fps/25 fps

  640 ? 480 @ 30 fps/25 fps

  640 ? 360 @ 30 fps/25 fps

  YUV2

  1920 ? 1080 @ 5 fps

  1280 ? 960 @ 5 fps

  1280 ? 720 @ 10 fps

  640 ? 480 @ 30 fps

  640 ? 360 @ 30 fps

• Resolution1920 (H) ? 1080 (V)
• Min. Illumination0.1 Lux @ (F1.2, AGC ON)
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Lens3.6 mm fixed focal lens
• Field Of Viewhorizontal FOV: 87?, vertical FOV: 55?, diagonal FOV: 95?
• Lens MountM8
• Day & Night24/7 Color Imaging
• Angle Adjustmentpan: 0? to 360?; tilt: 0? to 35?; ratation: 0?
• Digital Zoom1.5 ?
• Cable Length2 m
• Depth Of Field0.1 m to

• Image
• Wide Dynamic Range (WDR)Digital WDR
• White BalanceAuto

• Audio
• Audio Sampling Rate16 kHz

• Interface
• Video OutputUSB 2.0
• Operating System

  Windows XP/7/8/10

  Android 8.1+

  Linux 4.14+

  macOS 10.12+

  Chrome OS

• Built-In Microphone2 built-in microphones, picking up sounds in the radius up to 3 meters
• IndicatorWhite: Normally Working

• General
• Operating Conditions-10?C to 40?C (-40?F to 104?F), Humidity: 90% or less (non-condensing)
• Power SupplyDC 5V ? 5% (USB)
• Consumption2.5 W MAX
• Dimension120 mm ? 27.9 mm ? 25.6 mm (4.72" ? 1.10" ? 1.01")
• Approx. 147 g (0.32 lb.)

• Accessory
• Packing List

  Camera ? 1

  USB Cable ? 1

  Quick Start Guide ? 1
