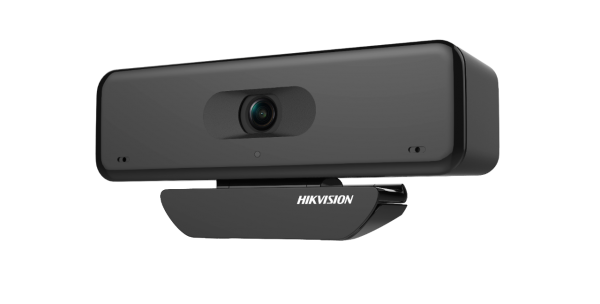

DS-U18

DS-U18 Specifications

• Camera
• Image Sensor8 MP CMOS
• Signal SystemPAL/NTSC
• Frame Rate

  USB 3.0:

  MJPEG:

  3840 ? 2160 @ 30 fps/25 fps

  1920 ? 1080 @ 30 fps/25 fps

  1280 ? 720 @ 30 fps/25 fps

  640 ? 480 @ 30 fps(default)/25 fps

  YUV:

  1920 ? 1080 @ 30 fps/25 fps

  1280 ? 720 @ 30 fps/25 fps

  640 ? 480 @ 30 fps/25 fps

  ?

  USB 2.0:

  MJPEG:

  1920 ? 1080 @ 30 fps/25 fps

  1280 ? 720 @ 30 fps/25 fps

  640 ? 480 @ 30 fps(default)/25 fps

  YUV:

  1920 ? 1080 @ 5 fps

  1280 ? 720 @ 10 fps/5 fps

  640 ? 480 @ 30 fps/25 fps

• Resolution3840 (H) ? 2160 (V)
• Min. Illumination0.1 Lux @ (F1.2, AGC ON)
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Lens3.6 mm fixed focal lens
• Field Of Viewhorizontal FOV: 79?, vertical FOV: 43?, diagonal FOV: 92?
• Lens MountM16
• Day & Night24/7 Color Imaging
• Angle Adjustmentpan: 0?; tilt: -10? to 30?; ratation: 0?
• Cable Length2 m
• Depth Of Field2 m to

• Interface
• Video OutputUSB 3.0
• Audio InBuilt-in mic
• Operating SystemWindows 7/10, Android, Linux

• General
• Operating Conditions-10?C to 45?C, Humidity: 90% or less (non-condensing)
• Power SupplyDC 5V ? 5% (USB)
• ConsumptionMax. 2.2 W
• MaterialPlastic
• Dimension130 mm ? 53.2 mm ? 56.6 mm (5.12" ? 2.09" ? 2.23")
• Approx. 137 g (0.30 lb)

• Accessory
• Packing List

  Camera ? 1

  USB cable ? 1

  Quick Start Guide ? 1
