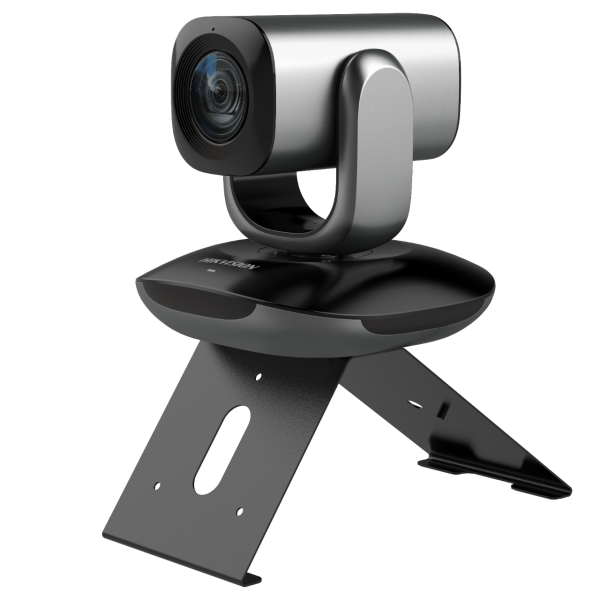

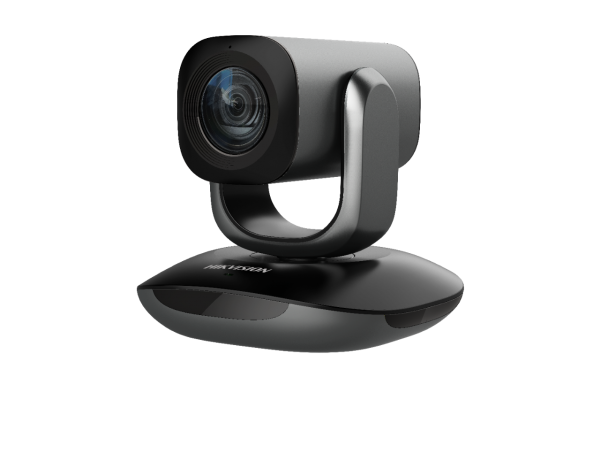

DS-U102

DS-U102 Specifications

• Camera
• Image Sensor2 MP CMOS
• Signal SystemPAL/NTSC
• Max. Resolution1920 ? 1080
• Frame Rate

  MJPEG

  640?480@30fps/25fps

  160?120@30fps/25fps

  176?144@30fps/25fps

  320?240@30fps/25fps

  352?288@30fps/25fps

  432?240@30fps/25fps

  640?360@30fps/25fps

  800?448@30fps/25fps

  800?600@30fps/25fps

  864?480@30fps/25fps

  960?720@30fps/25fps

  1024?576@30fps/25fps

  1280?720@30fps/25fps

  1920?1080@30fps/25fps

  YUV

  640?480@30fps

  160?120@30fps

  176?144@30fps

  320?240@30fps

  352?288@30fps

  432?240@30fps

  640?360@30fps

  800?448@30fps

  800?600@25fps

  864?480@29fps

  960?720@17fps

  1024?576@20fps

  1280?720@13fps

  1600?896@8fps

  1920?1080@5fps

• Min. Illumination0.1 Lux @ (F1.2, AGC ON)
• Shutter Time

  PAL: 1/25 s to 1/50,000 s

  NTSC: 1/30 s to 1/50,000 s

• Lens3.1 mm to 15.5 mm varifocal lens
• Field Of View

  Horizontal FOV: 84.9? to 20.8?

  Vertical FOV: 92.8? to 23.8?

  Diagonal FOV: 94? to 23.8?

• Day & NightColor
• Wide Dynamic Rangee120 dB
• Pickup Distance5 m
• Angle AdjustmentPan: -170? to 160?, Tilt:-28? to 28?
• Cable Length4.5 m

• Interface
• Video OutputUSB 2.0
• Audio InputBuilt-in Mic
• Operating SystemWindows XP/7/10, Android, Linux, Mac OS

• General
• Operating Conditions-10 to 50 (-40?F to 122?F); Humidity: 90% or less (non-condensing)
• Power SupplyDC12V?10%
• Consumption5.7 W MAX
• Dimension145.3 mm ? 145.6 mm ? 145.8 mm (5.7" ? 5.7" ? 5.7")
• Approx. 925 g (2.04 lb.)

• Function
• LED IndicatorRed: Standby, Blue: Normally Working;Blue Light Flashes Twice: Preset Setting Completed;Red Light Flashes Three Times: Restore to Factory Settings.
• White BalanceAuto

• Accessory
• Packing List

  Camera (including lens cover) ? 1

  Remote Control ? 1

  Power Adapter ? 1

  Cable ? 1

  Bracket ? 1

  Screws ? 1

  Quick Start Guide ? 1
