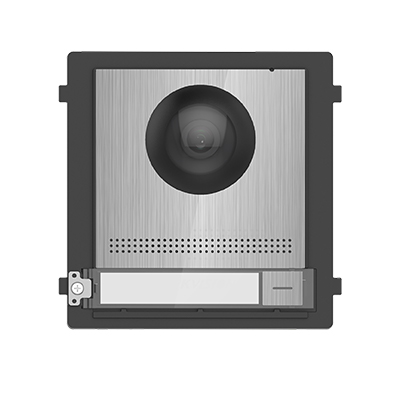

DS-KD8003-IME2/S

DS-KD8003-IME2/S Specifications

• Display Parameters
• Size/
• Operation Method/
• Type/

• Video Parameters
• Supplement Light

  IR supplement

  ?

• LensLow Illumination 2 MP HD IR Camera
• FOVHorizontal: 180? Vertical: 96?
• Pixel

  Main stream : 1920 ? 1080

  Sub stream : 720 ? 480

• Audio Parameters
• Audio QualityNoise suppression and echo cancellation

• Capacity
• Sub Door Station Capacity16

• Network Parameters
• Communication Protocol

  TCP/IP, RTSP

  ?

• Wired NetworkTwo-wire transmission
• Wi-Fi/
• Bluetooth/

• Device Interfaces
• Network Interface1
• Exit Button2
• Lock Control2
• Door Contact Input2
• Power Interface1

• General
• Button/
• InstallationFlush mounting, surface mounting
• Indicator/

• Without package: 400 g

  With package: 610 g

• Protective LevelIP65
• Working Temperature

  -40? C to +55? C(-40? F to 131? F)

  ?

• Working Humidity

  10% to 95%

  ?

• Dimensions98 mm ? 99.8 mm ? 43.9 mm (3.86" ? 3.93" ? 1.73")
• Battery/
• Power Supply

  24 VDC two-wire power supply (< 16 W)

  or 12 VDC independent power supply (< 20 W)

• Application EnvironmentOutdoor
• Power Consumption4 W
• LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian
