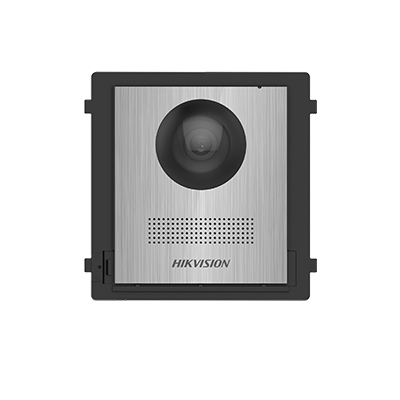

DS-KD8003-IME2/NS

DS-KD8003-IME2/NS Specifications

• System Parameters
• Operating SystemEmbedded Linux operation system
• ROM16 MB
• RAM256 MB
• CPUEmbedded MCU Processor

• Display Parameters
• Screen Size/
• Operation Method/
• Type/
• Resolution/

• Video Parameters
• LensLow Illumination 2 MP HD IR Camera
• Resolution

  Main stream : 1920 ? 1080

  Sub stream : 720 ? 480

• FOVHorizontal: 180? Vertical: 96?
• WDRSupport
• Supplement LightIR supplement
• Video Compression StandardH.264

• Audio Parameters
• Audio Compression StandardG.711 U
• Audio InputBuilt-in omnidirectional microphone
• Audio OutputBuilt-in loudspeaker (More than 85 dB within 20 cm)
• Audio Compression Bitrate64 Kbps
• Audio QualityNoise suppression and echo cancellation
• Volume AdjustmentAdjustable

• Capacity
• User Capacity/
• Face Capacity/
• Fingerprint Capacity/
• Event Capacity/
• Linked Indoor Station Capacity100
• Sub Door Station Capacity16

• Network Parameters
• Communication ProtocolTCP/IP, RTSP
• Wired NetworkTwo-wire transmission
• Wi-Fi Standard/
• Bluetooth Version/
• 3G/4G Standard/

• Device Interfaces
• Alarm Input4
• Network Interface1 10/100 Mbps self-adaptive Ethernet
• TAMPER1
• Exit Button2
• RS-4851
• USB/
• Wiegand/
• TF Card/
• Alarm Output2
• Lock Control2
• Door Contact Input2
• Power Interface1

• General
• Button/
• InstallationFlush mounting, surface mounting
• Indicator/

• Without package: 430 g

  With package: 627 g

• Protective LevelIP65
• Working Temperature-40? C to +55? C(-40? F to 131? F)
• Working Humidity10% to 95%
• Dimensions98 mm ? 99.8 mm ? 43.9 mm (3.86" ? 3.93" ? 1.73")
• Battery/
• Power Supply

  24 VDC two-wire power supply (< 16 W)

  or 12 VDC independent power supply (< 20 W)

• Application EnvironmentOutdoor
• Power Consumption4 W
• LanguageEnglish, French, Portuguese (Brazil), Spanish, Russian, German, Italian, polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian
