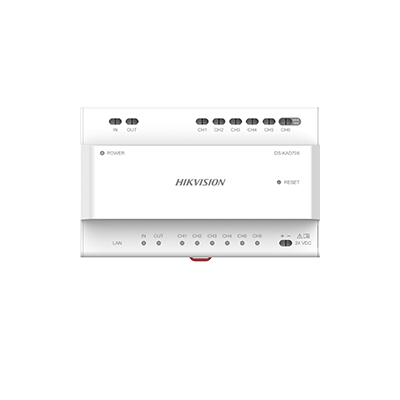

DS-KAD706-P

DS-KAD706-P Specifications

• Display Parameters
• SizeNot supported.
• Operation MethodNot supported.
• TypeNot supported.

• Video Parameters
• Supplement Light

  Not supported.

  ?

• LensNot supported.
• FOVNot supported.
• PixelNot supported.

• Audio Parameters
• Audio QualityNot supported.

• Network Parameters
• Communication Protocol

  Not supported.

  ?

• Wired NetworkNot supported.
• Wi-FiNot supported.
• BluetoothNot supported.

• Device Interfaces
• Network Interface

  1 RJ45 (1-ch reserved terminal and 1-ch

  for WAN access)

  ?

• Exit ButtonNot supported.
• Lock ControlNot supported.
• Door Contact InputNot supported.
• Power Interface

  6-ch for device power supply, including 1-

  ch for door station power supply with

  max. output power 16 W

  ?

• General
• ButtonNot supported.
• InstallationNot supported.
• Indicator

  8 signal indicators for indicating 6-ch input and output signal

  1 power indicator

• Not supported.
• Protective LevelNot supported.
• Power Supply Method

  Two-wire mode, 24 VDC

  ?

• Working Temperature

  -10 ?C to +40 ?C (14 ?F to +104 ?F)

  ?

  ?

• Working Humidity

  10% to 90%

  ?

  ?

• Dimensions

  143.7mm ? 92.4mm ? 65.9mm (5.66" ?

  3.64 ? 2.59\")

  ?

• BatteryNot supported.
• Power SupplyNot supported.
• Application EnvironmentNot supported.
• Power Consumption9 W

What's Included

Manuals
