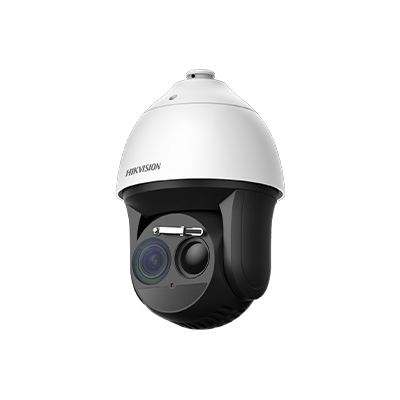

DS-2TD4137-25/W

DS-2TD4137-25/W Specifications

• Thermal Module
• Image SensorVOx Uncooled Focal Plane Arrays
• Resolution384 ? 288
• Pixel Interval17 ?m
• Response Waveband8 ?m to 14 ?m
• NETDLess than 40 mK (@ 25 ?C,F#=1.0)
• Focal Length25 mm
• Focus ModeAthermalized
• IFOV0.68 mrad
• ApertureF1.0
• Field Of View14.9? ? 11.2? (H ? V)
• Min. Focusing Distance13m
• Digital Zoom?2, ?4, ?8

• Optical Module
• Image Sensor1/1.8" Progressive Scan CMOS
• Resolution2688 ? 1520, 4 MP
• Min. IlluminationColor: 0.005 Lux @(F1.3AGC ON), B/W: 0.001 Lux @(F1.3AGC ON)
• Field Of View56.6? ?33.7? (H ? V)~1.8? ?1.0? (H ? V)
• Focal Length6-240 mm, 40x
• Aperture (Range)F1.3-F4.6
• Focus ModeSemi-auto/Manual
• Digital Zoom?2, ?4, ?8, ?16
• Shutter Speed1s to 1/30,000s
• WDR120 dB
• Optical DefogYes

• Image Effect
• Picture In PictureDisplay partial image of thermal channel on the full screen of optical channel
• Target ColorationSupported in white hot and black hot mode

• PTZ
• Movement RangePan: 360? Continuous Rotate; Tilt: From -20? to + 90? (auto flip)
• Pan SpeedConfigurable, From 0.1?/s to 200?/s, Preset Speed: 240?/s
• Tilt SpeedConfigurable, From 0.1?/s to 105?/s, Preset Speed: 200?/s
• Proportional ZoomYes
• Presets300 in total, 273 are configurable.
• Patrol Scan8; Up to 32 Presets Per Patrol
• Pattern Scan4; More Than 10 Minutes Per Pattern
• Power Off MemoryYes
• ParkPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
• PT StatusTurn On/Turn Off
• Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output

• Illuminator
• IR DistanceUp to 150m
• IR Intensity And AngleAutomatically adjusted

• Smart Function
• VCASupport 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene
• Temperature MeasurementSupport 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
• Temperature Range-20 ?C to 150 ?C (-4 ?F to 302 ?F)
• Temperature Accuracy? 8 ?C (?14.4 ?F)
• Fire DetectionDynamic fire detection, up to 10 fire points detectable.
• Smoking DetectionSupport

• Video And Audio
• Main Stream

  Thermal channel

  50fps(1920 ? 1080, 1280 ? 960, 1280 ? 720704?576640?512384?288)

  Optical channel

  50Hz:25fps(2688 ? 15201920 ? 1080, 1280 ? 960, 1280 ? 720)

  60Hz:30fps(2688 ? 15201920 ? 1080, 1280 ? 960, 1280 ? 720)

• Sub-Stream

  Thermal channel

  50fps(704?576640?512384?288)

  Optical channel

  50Hz:25fps(704 ? 576, 352 ? 288)

  60Hz:30fps(704 ? 576, 352 ? 288)

• Video Compression

  Main stream: H.265+/H.265/H.264+/ H.264

  Sub-stream: H.265/H.264/MJPEG

  ?

• Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM

• Network
• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
• Network StorageMicroSD/SDHC/SDXC card (256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• APIISAPI, HIKVISION SDK, third-party management platform, Open Network Video Interface (Profile S, Profile G, Profile T)
• Simultaneous Live ViewUp to 20 channels
• User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
• SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
• ClientiVMS-4200, Hik-Connect
• Web BrowserLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +

• Interface
• Alarm Input7-ch inputs (0-5 VDC)
• Alarm Output2-ch relay outputs, alarm response actions configurable
• Alarm ActionPreset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
• Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 K? ? 10%
• Audio OutputLinear Level; Impedance: 600 ?
• Communication Interface

  1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

  1, RS-485 interface

• Analog Video Output1.0 V [p-p]/75 ?, BNC for thermal channel

• General
• Web Client Language

  32 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

• Power Supply24 VAC ? 25%, 24VDC, 48VDC
• Power Consumption

  24VAC ? 25%: 5 A, max. 60 W

  24VDC: 2.5A, max. 60 W

  48VDC: 1.25V, max. 60 W

  Hi-PoE (Max. 60 W)

  ?

• Work Temperature/HumidityFrom -40?C to 65?C (-40?F to 149?F); Humidity: 95% or Less
• WiperYes
• Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
• Dimension220 mm ? 410 mm ? 198.6 mm (8.66" ? 16.15" ? 7.82")
• Approx. 9kg (19.84 lb)
