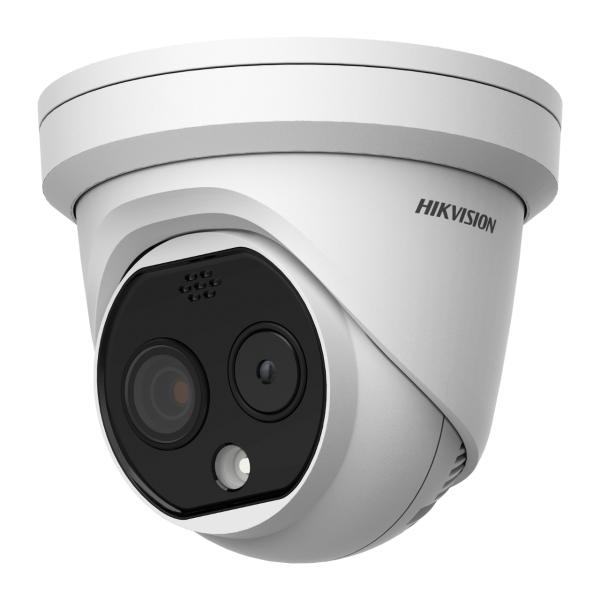

DS-2TD1217-2/QA

DS-2TD1217-2/QA Specifications

• Thermal Module
• Image SensorVanadium Oxide Uncooled Focal Plane Arrays
• Resolution160 ? 120
• Pixel Pitch17 ?m
• Spectral Range8 ?m to 14 ?m
• NETD< 40 mK (@ 25 ?C, F# = 1.1)
• Focal Length1.8 mm
• IFOV9.44 mrad
• Field Of View90.0? ? 66.4? (H ? V)
• Min. Focusing Distance0.1 m
• ApertureF1.1
• Digital Zoom? 2, ? 4

• Optical Module
• Image Sensor1/2.7" Progressive Scan CMOS
• Resolution2688 ? 1520
• Min. IlluminationColor: 0.0176 Lux @ (F2.25, AGC ON), B/W: 0.0035 Lux @ (F2.25, AGC ON)
• Shutter Speed1 s to 1/100,000 s
• Focal Length2 mm
• Field Of View119.3? ? 93.3? (H ? V)
• Aperture (Range)F2.3
• WDR120 dB

• Image Effect
• Target ColorationYes. Supported in white hot and black hot mode.

• Illuminator
• IR DistanceUp to 15 m
• IR Intensity And AngleAutomatically adjusted

• Audible And Visual Alarm
• White Light RangeUp to 30 m
• Visual AlarmYes. White light alarm with adjustable flashing frequencies
• Audio Alarm

  Yes, for two types of audible alarm (VCA, Temperature)

  2 preset voice alerts (one for each)

  6 importable user-defined voice alerts (4 options shared in the two types)

• Smart Function
• VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
• Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
• Temperature Range- 20 ?C to 150 ?C (- 4 ?F to 302 ?F)
• Temperature Accuracy? 8 ?C (? 14.4 ?F)

• Video And Audio
• Main Stream

  Thermal:

  25 fps (1280 ? 720, 704 ? 576, 640 ? 480, 352 ? 288, 320 ? 240)

  Optical:

  50 Hz: 25 fps (2688 ? 1520, 1920 ? 1080, 1280 ? 720)

  60Hz: 30 fps (2688 ? 1520, 1920 ? 1080, 1280 ? 720)

• Sub-Stream

  Thermal:

  25 fps (704 ? 576, 352 ? 288, 320 ? 240)

  Optical:

  50 Hz: 25 fps (704 ? 576, 352 ? 288)

  60 Hz: 30 fps (704 ? 480, 352 ? 240)

• Video Compression

  Main Stream: H.265/H.264

  Sub-Stream: H.265/H.264/MJPEG

• Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM

• Network
• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
• Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• APIISAPI, HIKVISION SDK, third-party management platform,
• Simultaneous Live ViewUp to 20 channels
• User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
• SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
• ClientiVMS-4200, Hik-Connect
• Web Browser

  Live view (plug-in allowed) : Internet Explorer 11

  Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +

  Local service : Chrome 57.0 +, Firefox 52.0 +

• Interface
• Alarm Input1, alarm input (0-5 VDC)
• Alarm Output1, alarm output (alarm response actions configurable)
• Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
• Audio Input

  1, 3.5 mm Mic in/Line in interface

  Line input: 2 - 2.4 V [p-p], output impedance: 1 K? ? 10%

• Audio OutputLinear level, impedance: 600 ?
• Communication Interface

  1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

  1, RS-485 interface (half duplex)

• General
• Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• Power Supply

  12 VDC ? 25%, ? 5.5 mm coaxial power plug

  PoE (802.3af, class 3)

• Power Consumption

  12 VDC ? 25%: 0.5 A, Max 6 W

  PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, Max 6.5 W

• Working Temperature/Humidity

  Temperature: - 40 ?C to 65 ?C (- 40 ?F to 149 ?F)

  Humidity: 95% or less

• Protection Level

  IP66 Standard

  TVS 6000V lightning protection, surge protection, voltage transient protection

• Dimensions138.3 mm ? 138.3 mm ? 123.1 mm (5.45" ? 5.45" ? 4.85 ")
• 940 g (2.07 lb)
