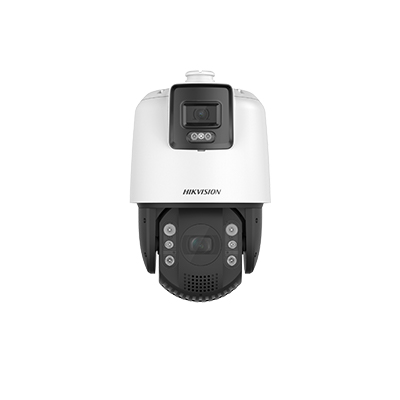

DS-2SE7C124IW-AE(32x/4)(S5)

DS-2SE7C124IW-AE(32x/4)(S5) Specifications

• Camera
• Image Sensor[panoramic channel]: 1/2.8" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
• Min. Illumination[PTZ channel]: Color: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.001 Lux @ (F1.2, AGC ON); [panoramic channel]: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed1/1 s to 1/30000 s
• Slow Shutteryes
• Focussemi-auto;manual;auto
• Day & NightICR
• Day/Night Switchday, night, auto, scheduled-switch
• BLCyes
• WDR120 dB WDR
• HLCyes
• 3D DNRyes
• Defogyes
• EISyes
• Regional Exposureyes
• Regional Focusyes
• Image Settingssaturation;brightness;contrast;sharpness
• White BalanceMWB;indoor;outdoor;fluorescent lamp;sodium lamp;ATW;auto;Locked WB;Locked WB
• Digital Zoom16x
• Optical Zoom32x
• Privacy Maskmosaic mask ;mask color configurable;polygon region ;[panoramic channel]up to 24 masks [PTZ channel]:up to 8 masks;[panoramic channel] 8 masks, [PTZ channel] 24 masks
• SNR52dB

• Lens
• Focal Length[panoramic channel]: 4 mm; [PTZ channel]: 4.8 to 153 mm, 32 ?
• Zoom Speedapprox. 4.2 s
• FOV

  [panoramic channel]: Horizontal field of view: 79?, Vertical field of view: 42.4?;

  [PTZ channel]:

  Horizontal field of view: 58.4? to 2.14? (wide-tele),

  Vertical field of view: 33.8? to 1.2? (wide-tele),

  Diagonal field of view: 65.6? to 2.46? (wide-tele)

• Aperture[panoramic channel]: F1.6; [PTZ channel]: F1.2

• Illuminator
• IR Distance200 m

• PTZ
• Movement Range (Pan)360?
• Movement Range (Tilt)-15? to 90? (auto flip)
• Pan Speedpan speed: configurable from 0.1? to 160?/s; preset speed: 240?/s
• Tilt Speedtilt speed: configurable from 0.1? to 120?/s, preset speed 200?/s
• Proportional Zoomyes
• Presets300
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans
• Power-Off Memoryyes
• Park Actionpreset;patrol scan;pattern scan;auto scan;tilt scan;random scan;frame scan;panorama scan
• 3D Positioningyes
• PTZ Status Displayyes
• Preset Freezingyes
• Scheduled Taskpreset;auto scan;random scan;frame scan;patrol scan;pattern scan;panorama scan;tilt scan;dome reboot;dome adjust;aux output

• Video
• Max. Resolution2560 ? 1440
• Stream Typemain stream;sub-stream;third stream
• Main Stream

  [panoramic channel]: 50 Hz: 25 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 960, 1280 ? 720);60 Hz: 30fps (2560 ? 1440, 1920 ? 1080, 1280 ? 960, 1280 ? 720)

  [PTZ channel]: 50 Hz: 25 fps (1920 ? 1080, 1280 ? 960, 1280 ? 720);60 Hz: 30 fps ( 1920 ? 1080, 1280 ? 960, 1280 ? 720)

• Sub-Stream

  [panoramic channel]: 50 Hz: 25 fps (704 ? 576, 640 ? 480, 352 ? 288);60 Hz: 30 fps (704 ? 480, 640 ? 480, 352 ? 240)

  [PTZ channel]: 50 Hz: 25 fps (704 ? 576, 640 ? 480, 352 ? 288);60 Hz: 30 fps (704 ? 480, 640 ? 480, 352 ? 240)

• Third Stream

  [panoramic channel]: 50 Hz: 25 fps (1920 ? 1080, 1280 ? 960, 1280 ? 720, 704 ? 576, 640 ? 480, 352 ? 288);60 Hz: 30 fps (1920 ? 1080, 1280 ? 960, 1280 ? 720, 704 ? 480, 640 ? 480, 352 ? 240)

  [PTZ channel]: 50 Hz: 25 fps (1920 ? 1080, 1280 ? 960, 1280 ? 720, 704 ? 576, 640 ? 480, 352 ? 288);60 Hz: 30 fps (1920 ? 1080, 1280 ? 960, 1280 ? 720, 704 ? 480, 640 ? 480, 352 ? 240)

• Video CompressionH.265;H.264;MJPEG
• Video Bit Rate32 kbps to 16384 kbps
• H.264 TypeBaseline Profile;Main Profile;High Profile;baseline profile;main profile;high profile
• H.265 TypeMain Profile;main profile
• H.264+yes
• H.265+yes
• SVCyes
• ROI;
  A
  P
  A
  ,
  A/
  8WROI:?;?
  ?*ROI;main stream, sub-stream and third stream respectively support eight fixed areas

• Audio
• Audio CompressionG.711alaw;G.711ulaw;G.722.1;G.726;MP2L2;PCM
• Audio Bit RateMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps;192kbps
• Audio Sampling RateMP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
• Environment Noise Filteringyes

• Smart Features
• Face Captureno
• Basic Eventmotion detection;alarm input;alarm output;video tampering alarm;exception
• Smart Eventintrusion detection;region entrance detection;region exiting detection;audio exception detection;line crossing detection
• Smart Trackingmanual tracking;event tracking
• Smart RecordANR;Dual-VCA
• Alarm Linkagesmart tracking;preset;patrol scan;pattern scan;memory card video recording;alarm output;sending email;notify surveillance center; upload to FTP

• Network
• Network StorageNAS (NFS, SMB/ CIFS); ANR;ANR
• ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour
• APIISAPI;Hikvision SDK;ONVIF (Profile S, Profile G, Profile T);ISUP
• Simultaneous Live View20
• User/Host32
• Smooth Streamingyes
• Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
• ClientiVMS-4200
• Web BrowserIE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+

• Interface
• Communication InterfaceRJ45, self-adaptive 10M/100M Ethernet port
• On-Board Storagesupport microSD/microSDHC/microSDXC cards;up to 256 GB
• Alarm Input2 alarm inputs
• Alarm Output1 alarm output
• Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm?10%
• Audio Output1 audio output, line level, impedance: 600 ?

• General
• Power24 VAC, Hi-PoE
• Power Consumption And CurrentMax. 60 W, including max. 3.7 W for heater and max. 16 W for supplement light
• Operating Conditions-30 to 65 (-22?F to 149?F) ;;humidity: d 90%
• Resetyes
• DemistDemist by heating the glass
• MaterialADC 12, PC, PC+10%GF
• Dimensions? 220.0 mm ? 373.3 mm (? 8.7" ? 14.7")
• Approx. 6 kg (13.23 lb.)

• Approval
• ProtectionIP66 Standard, IK10 (excluding glass window), 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
