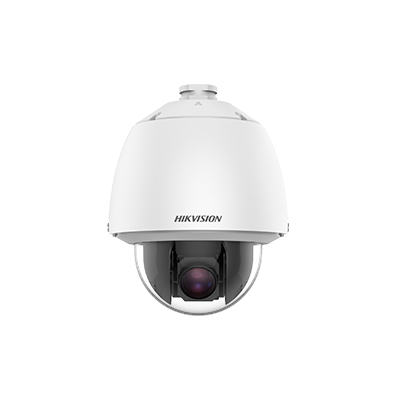

DS-2DE5232W-AE(S6)

No Review

Buy DS-2DE5232W-AE(S6) Online Dubai

1/2.8" Progressive Scan CMOS
High quality imaging with 2 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
32? optical zoom and 16? digital zoom provide close up views over expansive areas
WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
24 VAC & PoE (802.3at)
Efficient H.265+/H.265 compression technology
Water and dust resistant (IP66) and vandal resistant (IK10)

Camera
Image Sensor1/2.83 Progressive Scan CMOS
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON)
Shutter Speed1 s to 1/30,000 s
Slow ShutterYes
Day & NightIR cut filter
Zoom32x optional, 16x digital
Max. Resolution1920 ? 1080

PTZ
Movement Range (Pan)360?
Movement Range (Tilt)-5? to 90? (auto flip)
Pan SpeedPan speed: configurable from 0.1? to 250?/s; preset speed: 300?/s
Tilt SpeedTilt speed: configurable from 0.1? to 150?/s, preset speed 200?/s
Proportional PanYes
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans
Power-Off Memoryyes
Park ActionPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioningyes
PTZ Status Displayyes
Preset Freezingyes
Scheduled TaskPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Video
Main Stream
50 Hz: 25 fps (1920 ? 1080, 1280 ? 960, 1280 ? 720)

60 Hz: 30 fps (1920 ? 1080, 1280 ? 960, 1280 ? 720)
Sub-Stream
50 Hz: 25 fps (704 ? 576, 640 ? 480, 352 ? 288)

60 Hz: 30 fps (704 ? 480, 640 ? 480, 352 ? 240)
Third Stream
50 Hz: 25 fps (1920 ? 1080, 1280 ? 960, 1280 ? 720, 704 ? 576, 640 ? 480, 352 ? 288)

60 Hz: 30 fps (1920 ? 1080, 1280 ? 960, 1280 ? 720, 704 ? 480, 640 ? 480, 352 ? 240)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline profile/Main profile/High profile
H.265 TypeMain profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region Of Interest (ROI)8 fixed regions for each stream

Audio
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/32 Kbps (PCM)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filteringyes

Network
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, ISUP
APIOpen Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users; 3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
ClientiVMS-4200, HikCentral Pro, Hik-Connect
Web BrowserIE 10-11, Chrome 57+, Firefox 52+, Safari 12+

Day/Night SwitchDay, Night, Auto, Schedule
Image EnhancementBLC, HLC, 3D DNR
Wide Dynamic Range (WDR)120 dB
DefogDigital Defog
Regional ExposureYes
Regional FocusYes
Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Image Parameters SwitchYes
Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable
SNR52 dB

Interface
Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Alarm2 inputs, 1 output
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 K? ? 10%;

1 output (line out), line level, output impedance: 600 ?
ResetYes

Event
Smart TrackingManual tracking, auto-tracking
Basic EventMotion detection, video tampering alarm, exception, alarm input and output
Smart EventFace detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Alarm LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

General
Operating Condition-30 ?C to 65 ?C (-22 ?F to 149 ?F). Humidity 90% or less (non-condensing)
Power24 VAC, Max. 20 W; PoE (802.3at)
MaterialMetal
Dimension? 220 mm ? 280 mm (? 8.66" ? 11.02")
Approx. 3.0 kg (6.61 lb.)

Approval
EMC
FCC (47 CFR Part 15, Subpart B);

CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);

RCM (AS/NZS CISPR 32: 2015);

IC (ICES-003: Issue 7);

KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 62368-1)

CB (IEC 62368-1:2014+A11);

CE-LVD (EN 62368-1:2014+A11:2017),

BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005);

LOA (IEC/EN 60950-1)
Environment
CE-RoHS (2011/65/EU);

WEEE (2012/19/EU);

Reach (Regulation (EC) No 1907/2006)
ProtectionIP66 (IEC 60529-2013), IK10 (IEC 62262:2002), TVS 6000V lightning protection, surge protection and voltage transient protection
