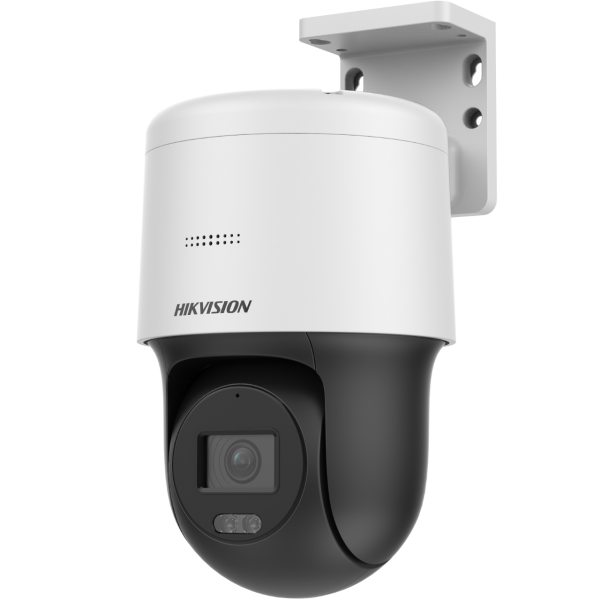

DS-2DE2C200MW-DE(S7)

DS-2DE2C200MW-DE(S7) Specifications

• Camera
• Image Sensor1/2.73 Progressive Scan CMOS
• Min. IlluminationColor: 0.01 Lux @(F1.2AGC ON), B/W: 0 Lux with IR
• Max. Resolution1920 ? 1080

• Lens
• Focal Length2.8 mm/ 4 mm
• FOV

  2.8 mm, horizontal FOV 111.4?, vertical FOV 59.1?, diagonal FOV 133.6?

  4 mm, horizontal FOV 91.5?, vertical FOV 46.1?, diagonal FOV 109.8?

• ApertureF1.6

• Illuminator
• Supplement Light TypeIR & White Light
• Supplement Light Range

  White Light Distance: up to 30 m

  IR Distance: up to 30 m

• Smart Supplement LightYes
• IR Wavelength850 nm

• PTZ
• Movement Range (Pan)0? to 340?
• Movement Range (Tilt)-5? to 105?
• Pan SpeedPan speed: configurable from 4? to 21?/s
• Tilt SpeedTilt speed: configurable from 4? to 19?/s

• Video
• Video CompressionH.265, H.264, MJPEG
• H.264 TypeBaseline Profile, Main Profile, High Profile
• H.265 TypeMain Profile
• Main Stream50 Hz: 25 fps (1920 ? 1080, 1280 ? 720)
• Sub-Stream50 Hz: 25 fps (640 ? 480, 640 ? 360)
• Video Bit Rate32 Kbps to 8 Mbps

• Audio
• Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM
• Audio Bit Rate64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)/16-64Kbps(AAC)
• Audio Sampling Rate8 kHz/16 kHz
• Environment Noise FilteringYes

• Network
• ProtocolsIPv4/IPv6, HTTP, HTTPS, Qos, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, Bonjour
• APIOpen Network Video Interface, ISAPI, SDK

• Image
• Image SettingsSaturation, brightness, contrast, sharpness
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementBLC, HLC, 3D DNR

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
• Built-In MicrophoneYes
• Built-In SpeakerYes
• ResetYes

• Event
• Basic EventMotion detection
• Alarm LinkageUpload to FTP, notify surveillance center, send email, upload to memory card

• General
• Operating Condition

  With supplement light on: -30  to 40 . Humidity 95% or less (non-condensing)

  With supplement light off: -30  to 50 . Humidity 95% or less (non-condensing)

• General FunctionMirror, password protection, watermark
• Power

  12 VDC ? 25%, 0.75 A, max. 9 W, ?5.5 mm coaxial power plug, reverse polarity protection

  PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.3 A, max. 10.8 W

• Dimensions

  Camera dimension: 162 mm ? 120 mm ? 234.2 mm (6.4" ? 4.7\" ? 9.2\")

  Package dimension: 205 mm ? 167 mm ? 289 mm (8.1 ? 6.6\" ? 11.4\")"

• Camera weight: 700 g (1.5 lb.)

  With package weight: 1250 g (2.8 lb.)

• Approval
• EMC

  FCC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

  IC (ICES-003: Issue 6, 2016)

• ProtectionIP66 (IEC 60529-2013)
