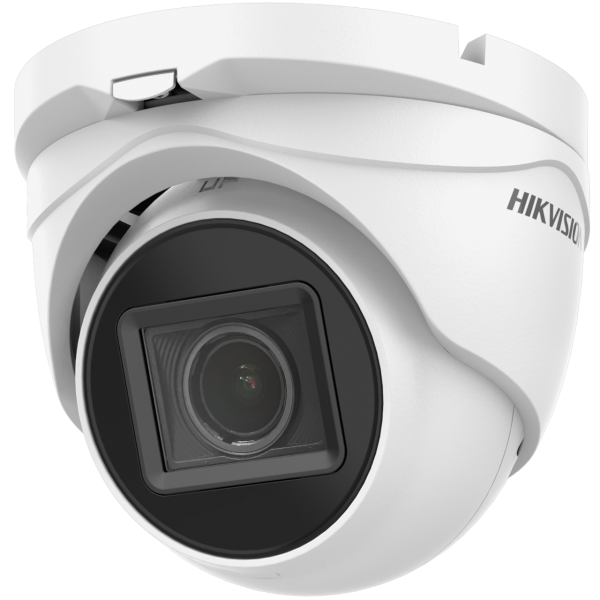

DS-2CE79H0T-IT3ZE(C)

DS-2CE79H0T-IT3ZE(C) Specifications

• Camera
• Image Sensor5 MP CMOS
• Signal SystemPAL/NTSC
• Resolution2560 (H) ? 1944 (V)
• Frame Rate

  TVI: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps

  AHD: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps

  CVI: 4 M @ 30 fps, 4 M @ 25 fps

  C[removed] PAL/NTSC

• Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Lens2.7 mm to 13.5 mm motorized varifocal lens
• Field Of Viewhorizontal FOV: 95? to 26?, vertical FOV: 72? to 20?, diagonal FOV: 126? to 33?
• Lens Mount?14
• Day & NightIR Cut Filter
• WDR (Wide Dynamic Range)Digital WDR
• Angle AdjustmentPan: 0? to 360?, Tilt: 0? to 75?, Rotation: 0? to 360?

• Image
• Day/Night ModeAuto/Color/BW (Black and White)
• Image ModeSTD/HIGH-SAT
• AGCYes
• White BalanceAuto/Manual
• AE (Auto Exposure) ModeBLC;HLC;Global;DWDR
• Noise Reduction2D DNR
• LanguageEnglish
• FunctionSharpness;Brightness;Smart IR

• Interface
• Video Output1 HD analog output

• General
• IR RangeUp to 40 m
• Operating Conditions-40?C to 60?C (-40?F to140?F), Humidity: 90% or less (non-condensing)
• Power Supply

  12 VDC?15%/PoC.at

  *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.

• ConsumptionMax 8.4 W
• Protection LevelIP67
• MaterialMetal
• CommunicationHIKVISION-C
• Dimension123.87 mm ? 110.24 mm ? 134.3 mm (4.87" ? 4.34" ? 5.29")
• Approx. 595 g (1.31 lb.)

What's Included

Manuals
