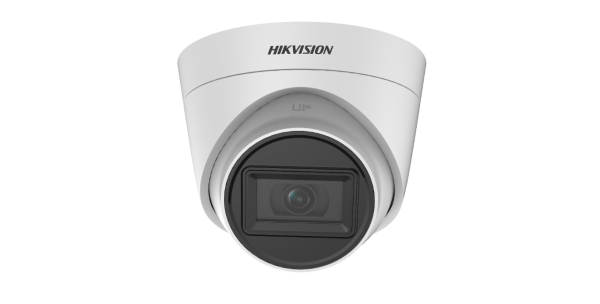

DS-2CE78H0T-IT3FS

DS-2CE78H0T-IT3FS Specifications

• Camera
• Image Sensor5 MP CMOS
• Max. Resolution2560 (H) ? 1944 (V)
• Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter Time

  PAL: 1/25 s to 1/50, 000 s

  NTSC: 1/30 s to 1/50, 000 s

• Day & NightICR
• Angle AdjustmentPan: 0 to 360?, Tilt: 0 to 75?,Rotation 0 to 360?
• Signal SystemPAL/NTSC

• Lens
• Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 85.5?,vertical FOV: 63.7?, diagonal FOV: 110.7?

  3.6 mm, horizontal FOV: 80.1?, vertical FOV: 63.7?, diagonal FOV: 105.9?

  6 mm, horizontal FOV: 57.1?, vertical FOV: 43.1?, diagonal FOV: 72.5?

• Lens MountM12

• Image
• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness, Sharpness, Mirror, Smart IR
• Frame Rate

  TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps

  CVI: 4MP@30fps, 4MP@25fps

  AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps

  C[removed] PAL/NTSC

  ?

• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• White BalanceATW/MANUAL
• AGCSupport

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

• General
• Material

  Enclosure: Plastic

  Main Body: Metal

• Dimension? 109.82 mm ? 91.03 mm (? 4.32" ? 3.6")
• Approx. 300 g (0.66 lb.)
• Operating Condition-40? C to 60? C (-40? F to 140? F), Humidity 90% or less (no condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply

  12 VDC ? 25%

  *You are recommended to use one power adapter to supply the power for one camera.

• Consumption

  Max. 3.7 W

  ?

• IR RangeUp to 40 m

• Approval
• ProtectionIP67

What's Included

Manuals
