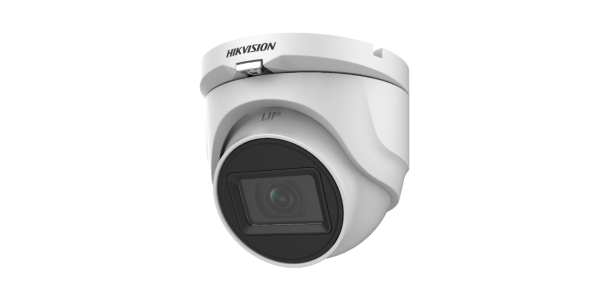

DS-2CE76H0T-ITMF(C)

DS-2CE76H0T-ITMF(C) Specifications

• Camera
• Image Sensor5 MP CMOS image sensor
• Max. Resolution2560 (H) ? 1944 (V)
• Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time

  PAL: 1/25 s to 1/50, 000 s

  NTSC: 1/30 s to 1/50, 000 s

• Day & NightICR
• Angle AdjustmentPan: 0 to 360?, Tilt: 0 to 75?, Rotation 0 to 360?
• Signal SystemPAL/NTSC

• Lens
• Lens Type2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens
• Focal Length & FOV

  2.4 mm, horizontal FOV: 110?, vertical FOV: 81?, diagonal FOV:137?

  2.8 mm, horizontal FOV: 85?, vertical FOV: 63?, diagonal FOV:110?

  3.6 mm, horizontal FOV: 80?, vertical FOV: 63?, diagonal FOV:105?

  6 mm, horizontal FOV: 57?, vertical FOV: 43?, diagonal FOV:72?

• Lens MountM12

• Image
• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness, Sharpness, Mirror, Smart IR
• Frame Rate

  TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps

  AHD: 5M@20fps, 4M@30fps, 4M@25fps

  CVI: 4M@30fps, 4M@25fps

  C[removed] PAL/NTSC

• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementBLC, HLC
• White BalanceATW/MANUAL
• AGCSupport

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

• General
• MaterialMetal
• Dimension? 82.6 mm ? 90 mm ? 79.37 mm (? 3.25" ? 3.54" ? 3.12")
• Approx. 289 g (0.64 lb.)
• Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply12 VDC ?25%
• Consumption

  Max. 4.3 W

  ?

• IR RangeUp to 30 m

• Approval
• ProtectionIP67
