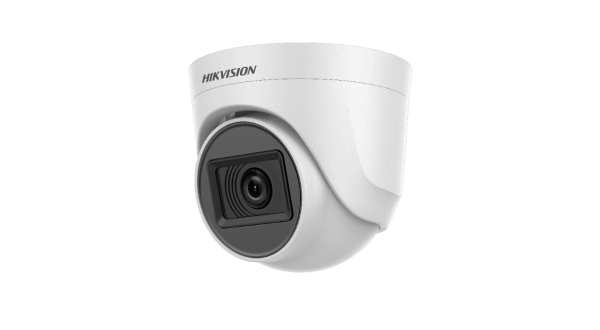

DS-2CE76D0T-ITPF(C)

DS-2CE76D0T-ITPF(C) Specifications

• Camera
• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) ? 1080 (V)
• Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter Time

  PAL: 1/25s to 1/50, 000 s

  NTSC: 1/15 s to 1/50, 000 s

• Day & NightICR
• Angle AdjustmentPan: 0? to 360?; Tilt: 0? to 75?; Rotate: 0? to 360?
• Signal SystemPAL/NTSC

• Lens
• Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 101?, vertical FOV: 60?, diagonal FOV: 122?

  3.6 mm, horizontal FOV: 79.6?, vertical FOV: 43.5?, diagonal FOV: 93.7?

  6 mm, horizontal FOV: 51.9??, vertical FOV: 30?, diagonal FOV: 58.8?

• Lens MountM12

• Image
• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness, Sharpness, Smart IR
• Frame Rate

  TVI: 1080P@30fps, 1080P@25fps

  CVI: 1080P@30fps, 1080P@25fps

  AHD: 1080P@30fps, 1080P@25fps

  C[removed] PAL/NTSC

• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementBLC, HLC
• White BalanceATW/MANUAL
• AGCSupport

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

• General
• MaterialPlastic
• Dimension? 84.6 mm ? 78.9 mm (? 3.33" ? 3.11")
• Approx. 135 g (0.30 lb.)
• Operating Condition-40? C to 60? C (-40? F to 140? F), Humidity 90% or less (no condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply12 VDC ? 25%
• Consumption

  Max. 2.2 W

  ?

• IR RangeUp to 20 m
