DS-2CE76D0T-EXIMF

DS-2CE76D0T-EXIMF Specifications

• Camera
• ModelDS-2CE76D0T-EXIMF

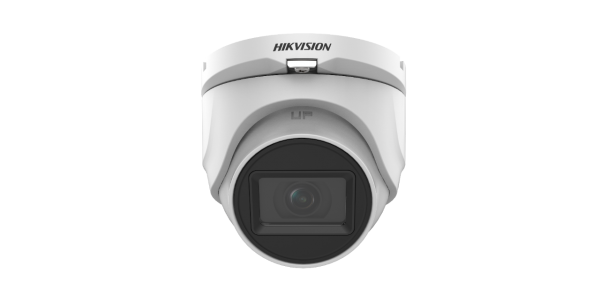

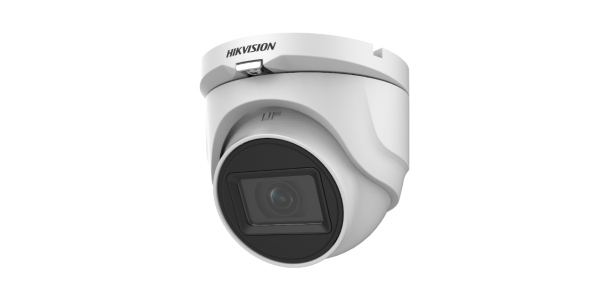

• Product Name2MP Outdoor EXIR Fixed Turret Camera
• Image Sensor2 MP CMOS
• Signal SystemPAL/NTSC
• Resolution1920 (H) ? 1080 (V)
• Frame Rate

  TVI: 1080p@25fps/30fps

  AHD: 1080p@25fps/30fps

  CVI: 1080p@25fps/30fps

  C[removed] PAL/NTSC

• Min. Illumination0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Lens2.8 mm, 3.6 mm Fixed Lens
• Field Of View

  2.8 mm, horizontal FOV: 102?, vertical FOV: 55?, diagonal FOV: 123?

  3.6 mm, horizontal FOV: 81?, vertical FOV: 42?, diagonal FOV: 100?

• Lens MountM12
• Day & NightIR Cut Filter
• WDR (Wide Dynamic Range)Digital WDR
• Angle AdjustmentPan: 0? to 360?, Tilt: 0? to 75?, Rotation: 0? to 360?

• Image
• Image ModeSTD/HIGH-SAT
• AGCYes
• Day/Night ModeAuto/Color/BW (Black and White)
• White BalanceAuto
• AE (Auto Exposure) ModeBLC;Global;DWDR
• Noise Reduction2D DNR
• LanguageEnglish
• FunctionSharpness;Smart IR;Mirror;Brightness

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

• General
• Operating Conditions-40?C to 60?C (-40?F to 140?F), Humidity: 90% or less (non-condensing)
• Power Supply12 VDC ? 25%
• ConsumptionMax. 3.3 W
• Protection LevelIP66
• MaterialMetal
• IR RangeUp to 20 m
• CommunicationHIKVISION-C
• Dimension90 mm ? 82.6 mm ? 79.372 mm (3.54" ? 3.25" ? 3.12")
• Approx. 360g (0.79 lb.)

What's Included

Manuals
