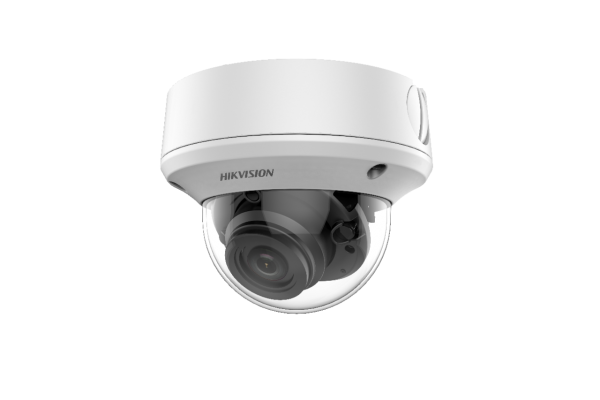

DS-2CE5AD3T-AVPIT3ZF

DS-2CE5AD3T-AVPIT3ZF Specifications

• Camera
• Image Sensor2.0 megapixel progressive scan CMOS
• Max. Resolution1920 (H) ?1080 (V)
• Min. Illumination0.005 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter Time

  PAL: 1/25 s to 1/50, 000 s

  NTSC: 1/30 s to 1/50, 000 s

  ?

• Day & NightIR cut filter
• Angle AdjustmentPan: 0? to 340?, Tilt: 0? to 75?, Rotation: 0? to 355?
• Signal SystemPAL/NTSC

• Lens
• Lens Type2.7 mm to 13.5 mm
• Focal Length & FOV102? to 31?
• Lens Mount? 14

• Image
• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness, Sharpness, 3D DNR, Mirror, Smart IR
• Frame Rate

  PAL: 1080p@25fps

  NTSC: 1080p@30fps

  ?

• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)e 120 dB
• Image EnhancementYes
• AGCHigh/Medium/Low

• Interface
• Video OutputTVI/AHD/CVI/CVBS

• General
• MaterialMetal
• Dimension?145 mm ? 111.3 mm (5.70" ? 4.37")

• Approx. 830 g (1.83 lb.)

  -A: Approx. 870 g (1.92 lb.)

  ?

• Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
• LanguageEnglish
• Power Supply

  12 VDC ?25%

  -A: 24 VAC ?15%, 12 VDC ?20%

  *You are recommended to use one power adapter to supply the power for one camera.

  ?

• Consumption

  Max. 7.7 W

  -A: Max. 9.7 W

  ?

• IR RangeUp to 70 m

• Approval
• ProtectionIP67, IK10
