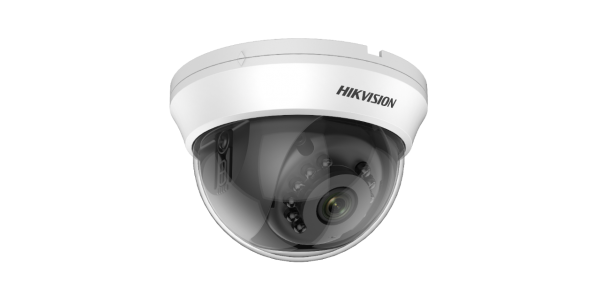

DS-2CE57H0T-VPITF(C)

DS-2CE57H0T-VPITF(C) Specifications

• Camera
• Image Sensor5 MP CMOS image sensor
• Signal SystemPAL/NTSC
• Frame Rate

  TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps

  AHD: 5M@20fps, 4M@30fps, 4M@25fps

  CVI: 4M@30fps, 4M@25fps

  C[removed] PAL/NTSC

• Resolution2560 (H) ? 1944 (V)
• Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time

  PAL: 1/25 s to 1/50, 000 s

  NTSC: 1/30 s to 1/50, 000 s

• Lens2.8 mm, 3.6 mm, 6 mm fixed lens
• Horizontal Field Of View

  2.8 mm, horizontal FOV: 85?, vertical FOV: 63?, diagonal FOV:110?

  3.6 mm, horizontal FOV: 80?, vertical FOV: 63?, diagonal FOV:105?

  6 mm, horizontal FOV: 57?, vertical FOV: 43?, diagonal FOV:72?

• Lens MountM12
• Day & NightICR
• WDR (Wide Dynamic Range)Digital WDR
• Angle AdjustmentPan: 0 to 355?, Tilt: 0 to 75?, Rotation 0 to 355?

• Menu
• Image ModeSTD/HIGH-SAT
• AGCSupport
• Day/Night ModeAuto/Color/BW (Black and White)
• White BalanceATW/MANUAL
• HLCYes
• BLC (Backlight Compensation)Yes
• LanguageEnglish
• FunctionsBrightness, Sharpness, DNR, Mirror, Smart IR

• Interface
• Video OutputTVI/AHD/CVI/CVBS

• General
• Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
• Power Supply12 VDC ?25%
• Power Consumption

  Max. 4.3 W

  ?

• Protection LevelIP67 IK10
• MaterialMetal
• IR RangeUp to 20 m
• CommunicationHIKVISION-C
• Dimensions? 100.4 mm ? 82.4 mm (? 4" ? 3.2")
• Approx. 362 g (0.80 lb.)
