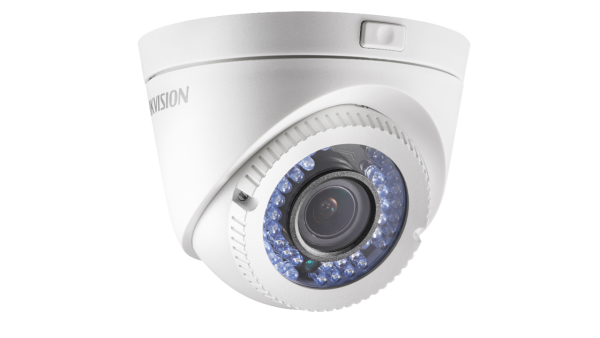

DS-2CE56D0T-VFIR3E

DS-2CE56D0T-VFIR3E Specifications

• Camera
• Image Sensor2 MP progressive scan CMOS
• Max. Resolution1920 (H) ? 1080 (V)
• Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50, 000 s,NTSC: 1/30 s to 1/50, 000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0? to 360?, Tilt: 0? to 75?, Rotation: 0? to 360?
• Signal SystemPAL/NTSC

• Lens
• Lens Type2.8 mm to 12 mm
• Focal Length & FOV105.2? to 32.8 ?
• Lens Mount?14

• Image
• Image SettingsBrightness, Sharpness, DNR, Mirror
• Frame RatePAL: 1080p@25fps,NTSC: 1080p@30fps
• Day/Night ModeSmart/color/BW(Black and White)
• Wide Dynamic Range (WDR)DWDR
• Image EnhancementBLC
• AGCLow/middle/high

• Interface
• Video OutputTVI only

• General
• MaterialEnclosure: Plastic,Upper turret: Metal,Lower turret: Plastic,Mounting base: Plastic
• Dimension? 130.5 mm ? 102.4 mm (5.14" ? 4.03")
• Approx. 710 g (1.57 lb.)
• Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), Humidity 90% or less (non-condensation)
• LanguageEnglish, Chinese
• Power Supply12 VDC ?15%/PoC.at
• ConsumptionMax. 6.5 W
• IR RangeUp to 40 m

• Approval
• ProtectionIP66
