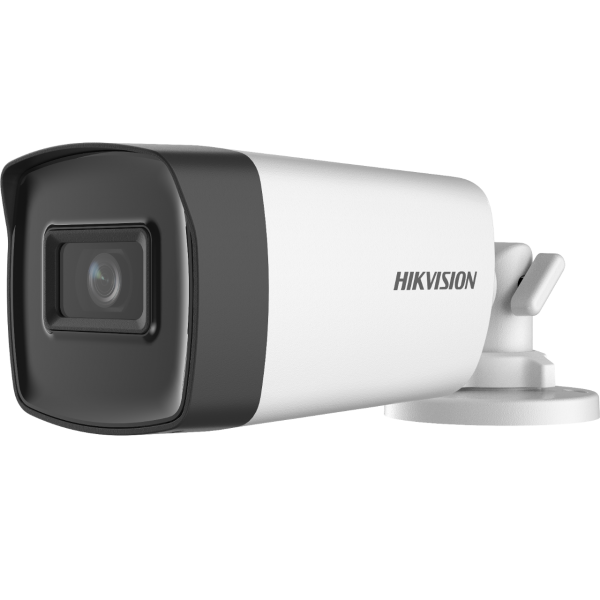

DS-2CE17H0T-IT3E(C)

DS-2CE17H0T-IT3E(C) Specifications

• Camera
• Image Sensor5 MP CMOS
• Max. Resolution2560 (H) ? 1944 (V)
• Min. Illumination0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
• Shutter Time

  PAL: 1/25 s to 1/50, 000 s

  NTSC: 1/30 s to 1/50, 000 s

• Day & NightICR
• Angle AdjustmentPan: 0 to 360?, Tilt: 0 to 180?, Rotation 0 to 360?
• Signal SystemPAL/NTSC

• Lens
• Lens Type2.8 mm, 3.6 mm and 6 mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 85?, vertical FOV: 63?, diagonal FOV: 110?

  3.6 mm, horizontal FOV: 80?, vertical FOV: 63?, diagonal FOV: 105?

  6 mm, horizontal FOV: 57?, vertical FOV: 43?, diagonal FOV: 72?

• Lens MountM12

• Image
• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness, Sharpness, Smart IR
• Frame Rate5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080P @ 30 fps, 1080P @ 25 fps
• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementDWDR, BLC, HLC, Global
• Noise Reduction2D DNR
• White BalanceAuto/Manual
• AGCYes

• Interface
• Video Output1 HD analog output

• General
• Material

  Front Cover: Metal

  Main Body: Plastic

• Dimension216.6 mm ? 78.9 mm ? 75.4 mm (8.53" ? 3.10" ? 2.97")
• Approx. 380 g (0.84 lb.)
• Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply

  12 VDC ?25%/PoC.af

  *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.

• Consumption

  Max. 4 W

  ?

• IR RangeUp to 40 m

• Approval
• ProtectionIP67

What's Included

Manuals
