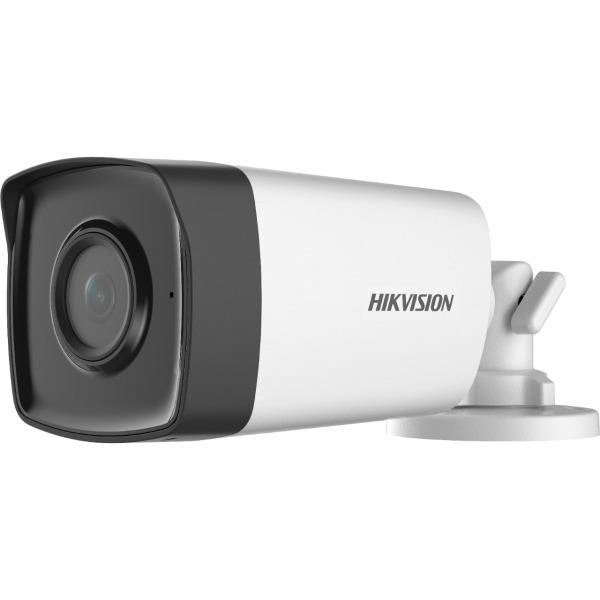

DS-2CE17D0T-IT3FS

DS-2CE17D0T-IT3FS Specifications

• Camera
• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) ? 1080 (V)
• Signal SystemPAL/NTSC
• Frame Rate

  TVI: 1080p @ 25 fps/30 fps

  CVI: 1080p @ 25 fps/30 fps

  AHD: 1080p @ 25 fps/30 fps

  C[removed] PAL/NTSC

• Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Slow ShutterMax. 16 times
• Lens MountM12
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0? to 360?, Tilt: 0? to 180?, Rotation: 0? to 360?

• Lens
• Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 106.4?, vertical FOV: 57.9?, diagonal FOV: 124.6?

  3.6 mm, horizontal FOV: 79.6?, vertical FOV: 43.5?, diagonal FOV: 93.7?

  6 mm, horizontal FOV: 51.9?, vertical FOV: 30?, diagonal FOV: 58.8?

• Image
• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness;Smart IR;Sharpness
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementDWDR;BLC;HLC;Global
• AGCYes
• Day/Night ModeAuto/Color/BW (Black and White)
• White BalanceAuto/Manual
• Noise Reduction2D DNR
• LanguageEnglish

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS
• Built-In MicrophoneYes

• General
• Operating Condition-40?C to 60?C (-40?F to 140?F), humidity: 90% or less (non-condensing)
• Power Supply12 VDC ? 25%,
• ConsumptionMax. 4.2 W
• MaterialFront cover: Metal, Main body: Plastic
• IR RangeUp to 40 m
• CommunicationHIKVISION-C
• Dimension78.9 mm ? 75.4 mm ? 216.6 mm (3.10" ? 2.97" ? 8.53")
• Approx. 328 g (0.72 lb.)

• Approval
• ProtectionIP67
