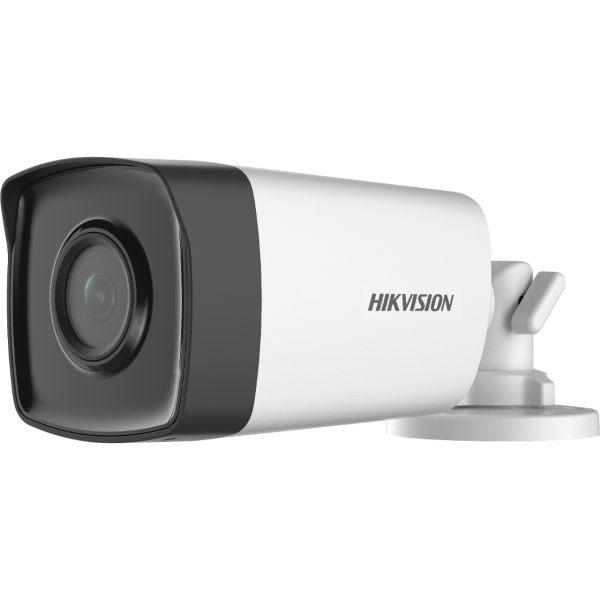

DS-2CE17D0T-IT1F(C)

DS-2CE17D0T-IT1F(C) Specifications

• Camera
• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) ? 1080 (V)
• Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time

  PAL: 1/25 s to 1/50,000 s

  NTSC: 1/30 s to 1/50,000 s

• Day & NightICR
• Angle AdjustmentPan: 0 to 360?, Tilt: 0 to 180?, Rotation: 0 to 360?
• Signal SystemPAL/NTSC

• Lens
• Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 101?, vertical FOV: 60?, diagonal FOV: 122?

  3.6 mm, horizontal FOV: 79.6?, vertical FOV: 43.5?, diagonal FOV: 93.7?

  6 mm, horizontal FOV: 51.9?, vertical FOV: 30?, diagonal FOV: 58.8?

• Lens MountM12

• Image
• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness, Sharpness, Smart IR
• Frame Rate

  TVI: 1080P@30fps, 1080P@25fps

  CVI: 1080P@30fps, 1080P@25fps

  AHD: 1080P@30fps, 1080P@25fps

  C[removed] PAL/NTSC

• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementDWDR/BLC/HLC/Global
• Noise ReductionYes
• White BalanceAuto/Manual
• AGCYes

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

• General
• Material

  Front Cover: Metal

  Main Body: Plastic

• Dimension78.9 mm ? 75.4 mm ? 216.6 mm (3.10" ? 2.97" ? 8.53")
• Approx. 320 g (0.71 lb.)
• Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply12 VDC ? 25%
• ConsumptionMax. 2.2 W
• IR RangeUp to 30 m

• Approval
• ProtectionIP67
