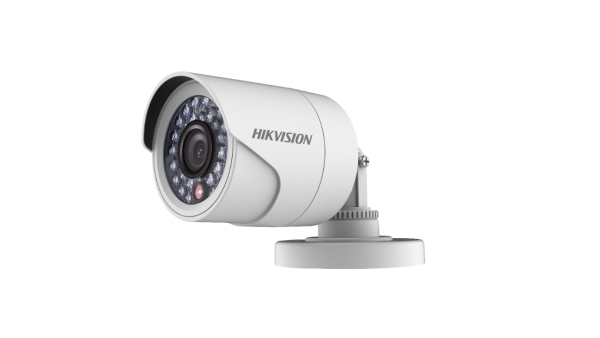

DS-2CE16C0T-IRPF

DS-2CE16C0T-IRPF Specifications

• Camera
• Image Sensor1 MP CMOS
• Max. Resolution1296(H) ?732(V)
• Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0 to 360?, Tilt: 0 to 180?, Rotation: 0 to 360?
• Signal SystemPAL/NTSC

• Lens
• Lens Type2.8 mm, 3.6 mm and 6 mm fixed focal lens
• Focal Length & FOV70.9? (3.6 mm), 92? (2.8 mm), 56.7? (6 mm)
• Lens MountM12

• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 20 m

• Image
• Frame Rate720p @ 25 fps/720p @ 30 fps
• SNR>62dB
• Noise Reduction2D DNR

• Interface
• Video Output1 HD analog output

• General
• Power12 V DC ? 15%, max. 4 W
• Dimension? 70 mm ? 154.5 mm ( 2.76" ? 6.08")
• Approx. 300 g (0.66 lb.)
• Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity 90% or less (non-condensing)

• Approval
• ProtectionIP66
