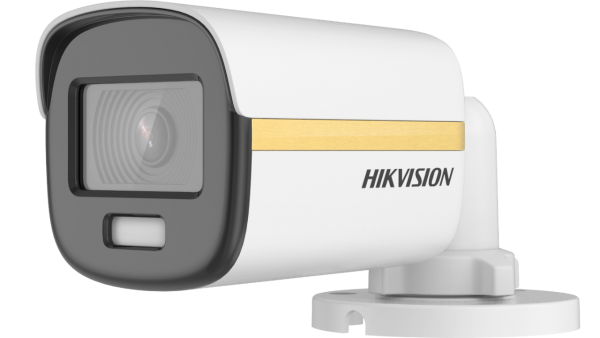

DS-2CE10KF3T-E

DS-2CE10KF3T-E Specifications

• Camera
• Image Sensor1/1.8" 3K CMOS
• Signal SystemPAL/NTSC
• Max. Resolution2960 (H) ? 1665 (V)
• Min. Illumination0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Light AlarmSolid Light Alarm (White Light)
• Angle AdjustmentPan: 0? to 360?, Tilt: 0? to 90?, Rotation: 0? to 360?

• Lens
• Lens Type2.8 mm and 3.6 mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 112?, vertical FOV: 60?, diagonal FOV: 133?

  3.6 mm, horizontal FOV: 95?, vertical FOV: 50?, diagonal FOV: 115?

• Lens MountM16

• Image
• Frame Rate3K@20fps, 4MP@25fps/30fps, 1080p@25fps/30fps
• Wide Dynamic Range (WDR)e130 dB
• White LightAuto/Off
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• AGCYes
• Day/Night ModeColor
• White BalanceAuto/Outdoor/Global/Manual
• Image EnhancementWDR;BLC;HLC;Global;HLS
• Privacy Mask4 programmable privacy masks
• Noise Reduction3D DNR/2D DNR
• Image SettingsAnti-Banding;Mirror;Contrast;Brightness;Smart Light

• Interface
• Video Output1 HD analog output

• Event
• Motion Detection4 programmable motion areas

• General
• LanguageEnglish
• Operating Condition-40?C to 60?C (-40?F to 140?F), Humidity: 90% or less (non-condensing)
• Power Supply

  12 VDC ? 25%/PoC.at

  *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.

• ConsumptionMax. 3.4 W
• MaterialMetal
• White Light RangeUp to 20 m
• CommunicationHIKVISION-C
• Dimension161.1 mm ? 70 mm ? 70 mm (6.34" ? 2.76" ? 2.76")
• Approx. 434 g (0.96 lb.)

• Approval
• ProtectionIP67

What's Included

Manuals
