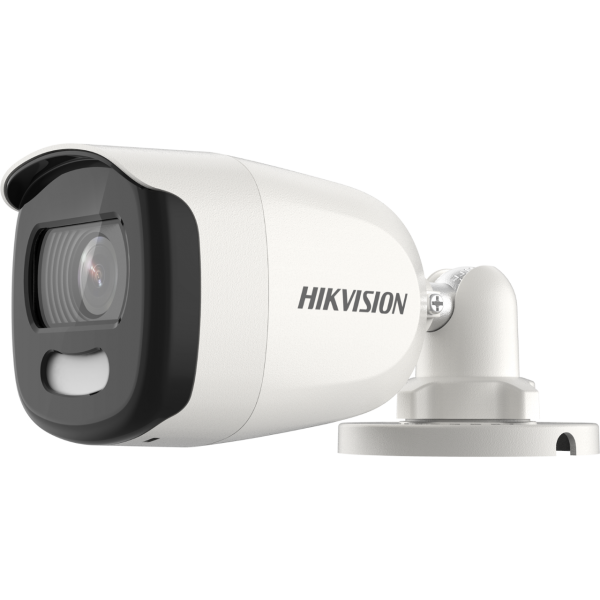

DS-2CE10HFT-F

DS-2CE10HFT-F Specifications

• Camera
• Image Sensor5 MP CMOS
• Max. Resolution2560 (H) ? 1944 (V)
• Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with White Light
• Shutter TimePAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
• Day & NightColor
• Angle AdjustmentPan: 0 to 360?, Tilt: 0 to 90?, Rotation: 0 to 360?
• Signal SystemPAL/NTSC

• Lens
• Lens Type3.6 mm, 6 mm fixed lens
• Focal Length & FOV80.1? (3.6 mm), 49.3? (6 mm)
• Lens MountM16

• Image
• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness, Sharpness, Mirror, Smart Light
• Frame Rate

  ?

  TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps CVI: 4MP@30fps, 4MP@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps C[removed] PAL/NTSC

• Day/Night ModeColor
• Wide Dynamic Range (WDR)e130 dB
• Image EnhancementBLC, HLC
• White BalanceAuto/Manual
• White LightAuto/Off
• AGCYes

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

• General
• MaterialMetal
• Dimension68 mm ? 70 mm ? 168.2 mm (2.68" ? 2.76" ? 6.62")
• Approx. 350 g (0.77 lb.)
• Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply

  12 VDC ? 25%

  *You are recommended to use one power adapter to supply the power for one camera.

• ConsumptionMax. 3.5 W
• White Light RangeUp to 20m

• Approval
• ProtectionIP67

What's Included

Manuals
