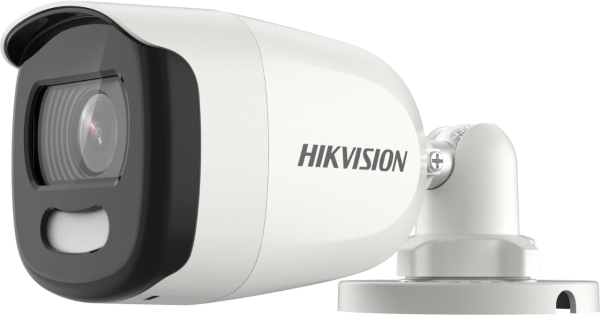

DS-2CE10HFT-E

DS-2CE10HFT-E Specifications

• Camera
• Image Sensor5 MP CMOS
• Max. Resolution2560 (H) ? 1944 (V)
• Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Angle AdjustmentPan: 0? to 360?, Tilt: 0? to 90?, Rotation: 0? to 360?
• Signal SystemPAL/NTSC
• Light AlarmSolid Light Alarm (White Light)

• Lens
• Lens Type2.8 mm, 3.6 mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 99.7?, vertical FOV: 72?, diagonal FOV: 139.8?

  3.6 mm, horizontal FOV: 80.1?, vertical FOV: 58.6?, diagonal FOV: 106.2?

• Illuminator
• Supplement Light TypeWhite Light
• Supplement Light RangeUp to 20 m
• Smart Supplement LightYes

• Image
• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness;Mirror;Sharpness;Anti-Banding
• Frame Rate5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps
• Day/Night ModeColor
• Wide Dynamic Range (WDR)e130 dB
• Image EnhancementWDR;BLC;HLC;Global;HLS
• Noise Reduction3D DNR/2D DNR
• White BalanceAuto/Manual
• White LightAuto/Off
• AGCYes

• Interface
• Video Output1 HD analog output

• General
• MaterialMetal
• Dimension68 mm ? 70 mm ? 168.2 mm (2.68" ? 2.76" ? 6.62")
• Approx. 398 g (0.88 lb.)
• Operating Condition-40?C to 60?C (-40?F to140?F), Humidity: 90% or less (non-condensing)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply

  12 VDC?25%/PoC.af

  *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.

• ConsumptionMax. 4 W

• Approval
• ProtectionIP67
