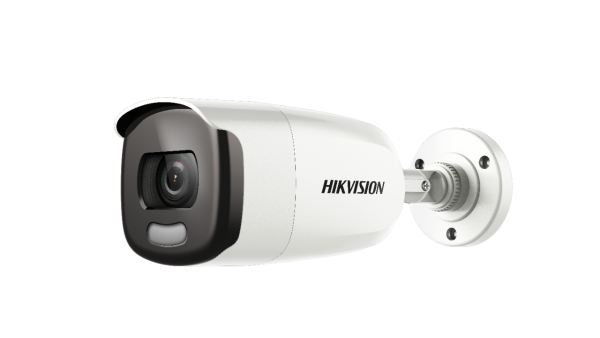

DS-2CE10DF0T-F

DS-2CE10DF0T-F Specifications

• Camera
• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) ? 1080 (V)
• Min. Illumination0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Angle AdjustmentPan: 0? to 360?, Tilt: 0? to 90?, Rotation: 0? to 360?
• Signal SystemPAL/NTSC
• Light AlarmSolid Light Alarm (White Light)

• Lens
• Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 98?, vertical FOV: 51?, diagonal FOV: 115?

  3.6 mm, horizontal FOV: 76?, vertical FOV: 41?, diagonal FOV: 90?

  6 mm, horizontal FOV: 50?, vertical FOV: 27?, diagonal FOV: 58?

• Lens MountM12

• Illuminator
• Supplement Light TypeWhite Light
• Supplement Light RangeUp to 20 m
• Smart Supplement LightYes

• Image
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image SettingsBrightness;Mirror;Sharpness;Anti-Banding
• Frame Rate

  TVI: 1080p@25fps/30fps

  CVI: 1080p@25fps/30fps

  AHD: 1080p@25fps/30fps

  C[removed] PAL/NTSC

• Day/Night ModeColor
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementDWDR;BLC;HLC;Global
• Noise Reduction3D DNR/2D DNR
• White BalanceAuto/Manual
• White LightAuto/Off
• AGCYes

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

• General
• MaterialMetal
• Dimension161.1 mm ? 70 mm ? 70 mm (6.34" ? 2.76" ? 2.76")
• Approx. 395 g (0.87 lb)
• Operating Condition-40?C to 60?C (-40?F to140?F), Humidity: 90% or less (non-condensing)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply

  12 VDC ? 25%

  *You are recommended to use one power adapter to supply the power for one camera.

• ConsumptionMax. 2.4 W

• Approval
• ProtectionIP67
